General Purpose 24 Hour Time Switches
Precision makes it easy to replace any other timer at great savings!
Just use a Precision Timer with a compatible mounting bracket. The timer simply snaps into your new or existing enclosure. There's no need to remove the old box. Takes 30 seconds to install.

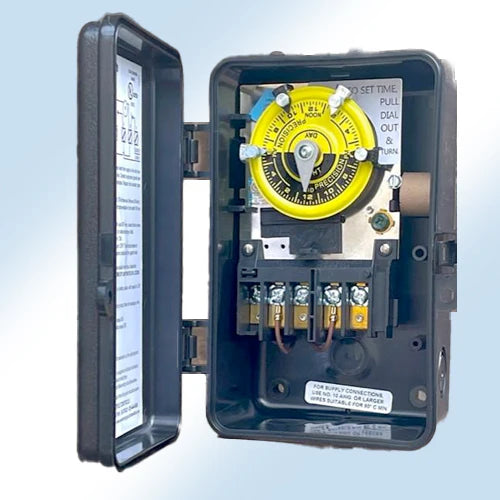

1. General Purpose 24-Hour Time Switch with Non-Corrosive Enclosure.
For automatic on/off control of your pool filter.
| Model | Voltage | Switch | Enclosure |
|---|---|---|---|
| CD101 | 120 | SPST | Raintight-NEMA 3 |
| CD102 | 240 | SPST | Raintight-NEMA 3 |
| CD103 | 120 | DPST | Raintight-NEMA 3 |
| CD104 | 240 | DPST | Raintight-NEMA 3 |
| CD105 | 120 | SPDT | Raintight-NEMA 3 |
| CD106 * For 2-Speed Pumps |
240 | SPDT | Raintight-NEMA 3 |

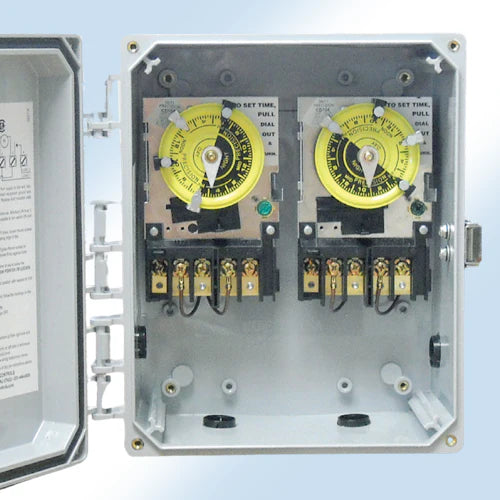

2. Two-In-One Swimming Pool Time Switches with Non-Corrosive Enclosure.
This version includes two independent timers in one enclosure to control pool filter, cleaner or heater.
| Model | Mechanisms | Enclosure |
|---|---|---|
| CD2204R | CD101M & CD104M | Raintight-NEMA 3 |
| CD2104R | Two CD104M | Raintight-NEMA 3 |
| CD2101R | Two CD101M | Raintight-NEMA 3 |
| CD2106R* |
CD106 & CD104 |
Raintight-NEMA 3 |
| CD2204R-211 | CD101 & CD104-201 | Raintight-NEMA 3 |
| CD2204R-214 | CD104 & CD104-201 | Raintight-NEMA 3 |

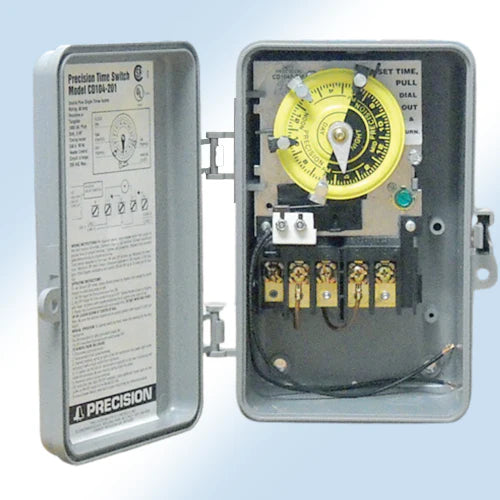

3. General Purpose 24 Hour Timer Switch with Heater Delay Circuit (Fireman's Switch)
Two circuit time switch turns off heater 20 minutes before filter pump turns off.
| Model | Voltage | Switch | Enclosure |
|---|---|---|---|
| CD101P-201 | 120 | SPST | Raintight-NEMA 3 |
| CD104P-201 | 240 | DPST | Raintight-NEMA 3 |
| CD104-201-IC* | 240 | DPST | N/A* |
* Fit's into Internatic® T104-201 enclosure

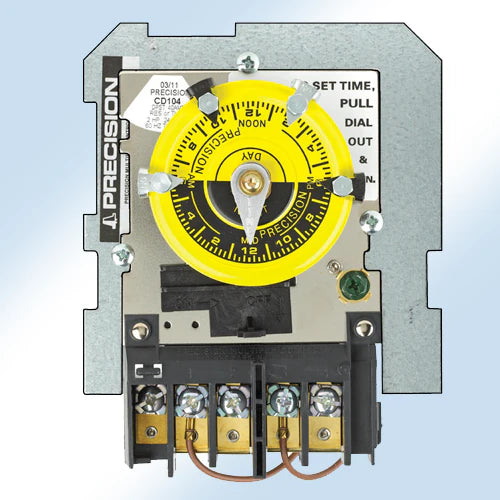

4. Timer Switch Mechanism Only
Precision timer movement with adaptor bracket used to replace and existing competitor's timer. Our timers easily fit directly into an Intermatic®, Paragon®, or Tork® enclosure.
No special tools or hardware required.
| Model | Volt | Switch | Amps | Replaces Model |
|---|---|---|---|---|
| CD101-IC | 120 | SPST | 40 | T101, T101P, T101R |
| CD102-IC | 240 | SPST | 40 | T102, T102P, T102R |
| CD103-IC | 120 | DPST | 40 | T103, T103P, T103R |
| CD104-IC | 240 | DPST | 40 | T104, T104P, T104R |
| CD105-IC | 120 | SPDT | 40 | T105, T105P, T105R |
| CD106-IC | 240 | SPDT | 40 | T106, T106P, T106R |
| CD104-201-IC* | 240 | DPST | 40 | T104-201R |
* With Heater-Delay Circuit
5. Hot Water Heater Timer
SAVE from 10% to 25% off your annual electric water heating bill with our hot water heater timer! Now you can program your Hot Water Heater to turn off during peak utility demand and on at night when rates are low. Check with your local utilities for peak / off peak times.
| Precision Model | Volt | AMP | Price |
|---|---|---|---|
| CD104-20 | 240 VAC | 40 | $65.00 |
| CD104-20-IC (timer mechanism only, no box) | 240 VAC | 40 | $54.00 |
